Graphics | Ceiling Products

Velaria Systems acoustic membrane systems are available in a wide range of colors, patterns, and textures. But what if you want something a little different, something that truly meets your design intent?

Velaria Systems Design Studio will work with you to implement the graphic images you need to truly express your vision.

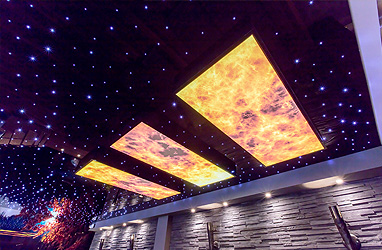

Printed Images

There are virtually no limits to the effect you can achieve by incorporating printed images.

For the same amount of work as installing a regular membrane – and less than typical alternative drywall options - you can create an environment that connects with people on a visual, emotional, and even physical level – especially when illumination and/or enhanced acoustic performance is included.

Contact the Velaria Systems Design Studio to get started now.

Click here to view our library of images available for large format printing.

Acoustic Performance

Graphics Non-Illuminated

Velaria Systems membrane systems come standard with superior acoustic performance that will significantly contribute to reducing noise in your space even while creating a completely unique experience through the use of graphics and images.

For even better comfort, Velaria Systems offers Enhanced and Ultra levels of acoustic performance; and for spaces where noise levels are less of a concern, a budget-friendly Basic option is also available.

Performance Level	Description	Noise Reduction Coefficient (NRC)
Standard	Single Layer of Acoustic Membrane	0.55
Enhanced	Single Layer of Acoustic Membrane + Acoustic Absorber	0.75
Ultra	Single Layer of Acoustic Membrane + Thick Acoustic Absorber	0.90
Basic	Single Layer of Non-acoustic Membrane	0.20

Standard	Frequency (Hz)						Noise Reduction Coefficient	Weighted Sound Absorption Coefficient (ISO EN 11654)	Sound Absorption Class (ISO EN 11654)
	125	250	500	1000	2000	4000	NRC	α_w	Class
α_s	0.11	0.43	0.65	0.51	0.57	0.53	0.55	0.55	D

Enhanced	Frequency (Hz)						Noise Reduction Coefficient	Weighted Sound Absorption Coefficient (ISO EN 11654)	Sound Absorption Class (ISO EN 11654)
	125	250	500	1000	2000	4000	NRC	α_w	Class
α_s	0.18	0.67	0.85	0.63	0.69	0.62	0.70	0.70	C

Ultra	Frequency (Hz)						Noise Reduction Coefficient	Weighted Sound Absorption Coefficient (ISO EN 11654)	Sound Absorption Class (ISO EN 11654)
	125	250	500	1000	2000	4000	NRC	α_w	Class
α_s	0.74	1.13	1.05	0.79	0.68	0.62	0.90	0.75(L,M)	C

Basic	Frequency (Hz)						Noise Reduction Coefficient	Weighted Sound Absorption Coefficient (ISO EN 11654)	Sound Absorption Class (ISO EN 11654)
	125	250	500	1000	2000	4000	NRC	α_w	Class
α_s	0.14	0.27	0.27	0.18	0.16	0.14	0.20	0.20(L)	E

Graphics Illuminated

Performance Level	Description	Noise Reduction Coefficient (NRC)
Standard	Outer Layer Acoustic Membrane + Inner Layer of Acoustic Membrane + Non-acoustic light sheet	0.70
Enhanced	Outer Layer Acoustic Membrane + Inner Layer of Acoustic Membrane + Acoustic light sheet + Acoustic Absorber	0.85
Basic	Outer Layer Non-acoustic Membrane + Inner Layer of Non- acoustic Membrane + Non-acoustic light sheet	N/A

Standard Illuminated	Frequency (Hz)						Noise Reduction Coefficient	Weighted Sound Absorption Coefficient (ISO EN 11654)	Sound Absorption Class (ISO EN 11654)
	125	250	500	1000	2000	4000	NRC	α_w	Class
α_s	0.11	0.43	0.65	0.51	0.57	0.53	0.70	0.70	C

Enhanced Illuminated	Frequency (Hz)						Noise Reduction Coefficient	Weighted Sound Absorption Coefficient (ISO EN 11654)	Sound Absorption Class (ISO EN 11654)
	125	250	500	1000	2000	4000	NRC	α_w	Class
α_s	0.51	1	0.79	0.87	0.76	0.54	0.85	0.75(L)	C
