Suitable for new builds or renovations, these textile systems are simple to specify and are easily renewed for spaces that require regular updates. A world of textures, colors, and graphics that incorporate sustainable materials will enable your vision of the perfect, quiet space to come alive.
Just as our membrane systems offer an alternative to drywall and paint and the weight, waste, and mess that accompanies them, so to architectural textiles are another option to create beautiful (and quiet) spaces using subtle shades or vibrantly colored images. It’s your choice.
At Velaria Systems, our goal is to make specifying our products as simple and efficient as possible. For architectural textiles you just have to select the textile that best suits your application and our Design Studio will work with you to ensure the specifications for creating an image or color scheme are correct and the best mounting track option selected. We will then work with our partner, PONGS, to ensure we deliver exactly the look and performance you require.
Color |
White (for printing) |
Material |
100% Post-consumer recycled polyester, PVC-free, Recyclable |
Width |
61" & 122" |
Weighted Sound Absorption Coefficient |
0.90 |
Fire Rating |
NFPA#701 |
Printing Methods |
Dye Sublimation, Latex, UV |
Cutting Methods |
Ultrasonic, Heat |
Order Code |
VS-PONGS-AKU-NLFR-xxx |
Color |
White (contact Velaria Systems for available colors) |
Material |
100% Polyester weave, PVC-free, Recyclable |
Width |
61" & 122" |
Weighted Sound Absorption Coefficient |
0.90 |
Fire Rating |
NFPA#701 |
Printing Methods |
Dye Sublimation, Latex, UV |
Cutting Methods |
Ultrasonic, Heat |
Order Code |
VS-PONGS-AKU-NLFR-xxx |
Color |
White (contact Velaria Systems for available colors) |
Material |
100% Trevira CS, PVC-free, Recyclable |
Width |
126", 165", 205" |
Weighted Sound Absorption Coefficient |
0.90 |
Fire Rating |
ASTM E84 Class A |
Printing Methods |
UV |
Cutting Methods |
Cold, Ultrasonic, Heat |
Order Code |
VS-PONGS-PRMACC-xxx-yyy |
Color |
White (for printing) |
Material |
100% Post-consumer recycled polyester, PVC-free, Recyclable |
Width |
99", 122", 199" |
Weighted Sound Absorption Coefficient |
0.85 |
Fire Rating |
ASTM E84 Class A |
Printing Methods |
Latex, UV |
Cutting Methods |
Cold, Ultrasonic |
Order Code |
VS-PONGS-SIL05-xxx-NLFR-yyy |

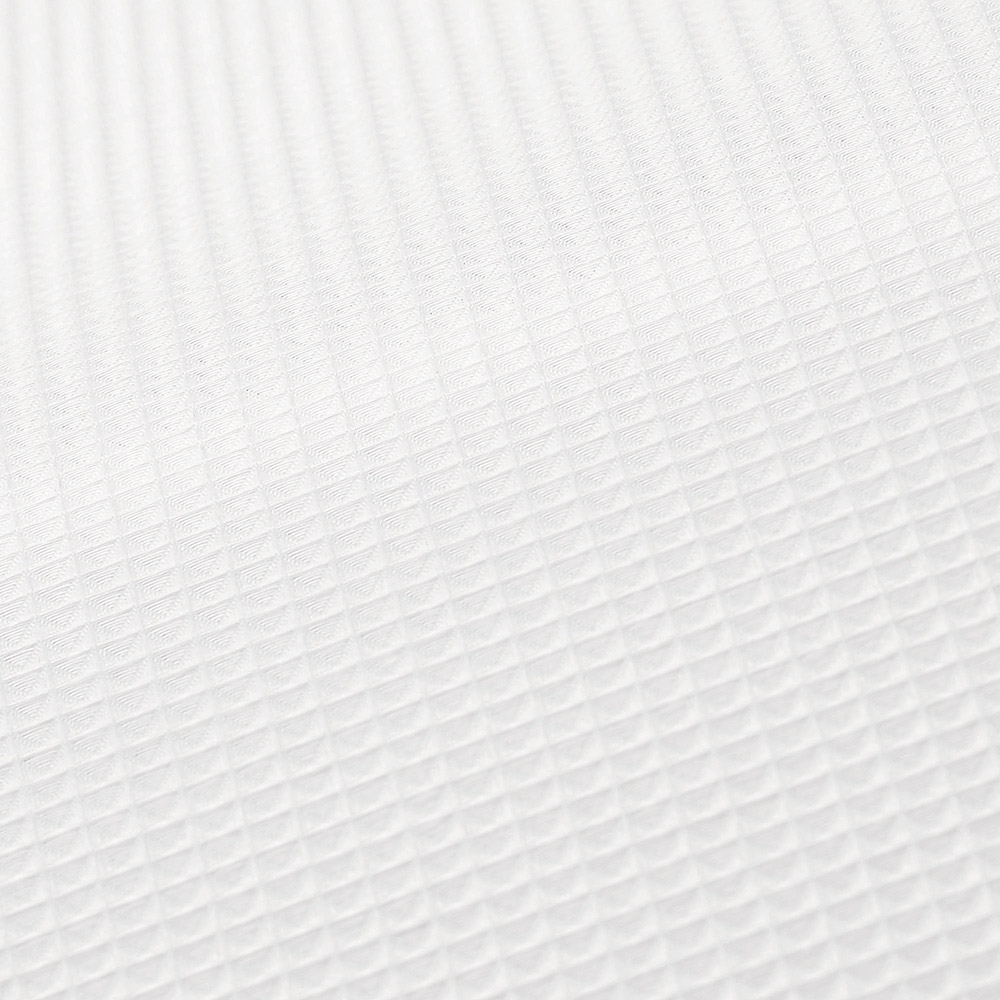

*Diamond pattern weave- size 0.20” (5 mm) |
Color |
White (for printing) |
Material |
100% Post-consumer recycled polyester, PVC-free, Recyclable |
Width |
99", 122", 199" |
Weighted Sound Absorption Coefficient |
0.85 |
Fire Rating |
ASTM E84 Class A |
Printing Methods |
Latex, UV |
Cutting Methods |
Cold, Ultrasonic |
Order Code |
VS-PONGS-SIL10-xxx-yyy |
*Diamond pattern weave- size 0.39” (10 mm) |
Color |
White (contact Velaria Systems for available colors |
Material |
100% Trevira CS, PVC-free, Recyclable |
Width |
99", 122", 199" |
Weighted Sound Absorption Coefficient |
0.85 |
Fire Rating |
ASTM E84 Class A |
Printing Methods |
Latex, UV |
Cutting Methods |
Cold, Ultrasonic |
Order Code |
VS-PONGS-SIL05-xxx-yyy |
*Diamond pattern weave- size 0.20” (5 mm) |
Color |
White (contact Velaria Systems for available colors) |
Material |
100% Trevira CS, PVC-free, Recyclable |
Width |
99", 122", 199" |
Weighted Sound Absorption Coefficient |
0.85 |
Fire Rating |
ASTM E84 Class A |
Printing Methods |
Latex, UV |
Cutting Methods |
Cold, Ultrasonic |
Order Code |
VS-PONGS-SIL10-xxx-NLFR-yyy |
*Diamond pattern weave- size 0.39” (10 mm) |
Color |
White (for printing) |
Material |
100% Polyester weave, PVC-free, Recyclable |
Width |
99", 122", 199" |
Weighted Sound Absorption Coefficient |
0.70 |
Fire Rating |
ASTM E84 Class A |
Printing Methods |
UV, Dye Sublimation |
Cutting Methods |
Cold, Ultrasonic |
Order Code |
VS-PONGS-SND-xxx |
Color |
White (contact Velaria Systems for available colors) |
Material |
100% Polyester knit, PVC-free, Recyclable |
Width |
61" & 122" |
Fire Rating |
ASTM E84 Class A |
Printing Methods |
UV, Latex |
Cutting Methods |
Cold, Ultrasonic |
Order Code |
VS-PONGS-PRM-xxx-yyy |
Color |
White (contact Velaria Systems for available colors) |
Material |
100% Polyester knit, PVC-free, Recyclable; Cleanable |
Width |
61" & 122" |
Fire Rating |
ASTM E84 Class A |
Printing Methods |
UV, Dye Sublimation |
Cutting Methods |
Cold, Ultrasonic |
Order Code |
VS-PONGS-PRM-D&C-xxx-yyy |
Velaria Systems is all about enabling interior spaces that are better for people and works with partners who share its commitment to providing solutions that are good for people and good for the planet.
Not only are the Architectural Textile products from PONGS fully recyclable and in some cases manufactured from 100% post-consumer recycled materials, the company itself is an established leader in sustainability. You can read more about how they have accomplished this here.
Contact the Velaria Systems Design Studio to get started.
The Velaria Systems Design Studio will assist you in determining the textile and mounting system that best suits your application and work with our partner, PONGS, to ensure a successful outcome at every stage of your project from concept-to-commissioning.
